PROTECTIVE GUARD – OUTSIDE CORNER MOUNT

OUTSIDE CORNER MOUNT PROTECTIVE GUARD
Ranging in sizes from 12”- 36” Wide x 12”- 36” Deep
(PGP-OCWLD-1212-1)

Pricing starting at $422.10

Email sales@proguardpacific.ca for more information.

Specifications:

  • Width 12”- 36” (305mm – 915mm) inside dimension / Depth 12”- 36” (305mm-915mm) inside dimension
  • Height 42” (1067mm)
  • Heavy Duty 2” (50 mm) x ⅜” (10 mm) thick mounting tabs and bars
  • Heavy Duty 2 ½” (64 mm) x 3/16” (5 mm) thick vertical support frame with ½” (12mm) thick feet
  • Heavy Duty 2 ½” (64 mm) x 3/16” (5 mm) thick vertical wall / pillar mount bracket
  • Eight heavy duty formed mounting tabs and feet include provisions for ⅜” (10 mm) mounting hardware
  • Finished in durable, all-weather ‘Gloss Safety Yellow’ powder coating
  • Weight 75+ lbs / 34+ kg

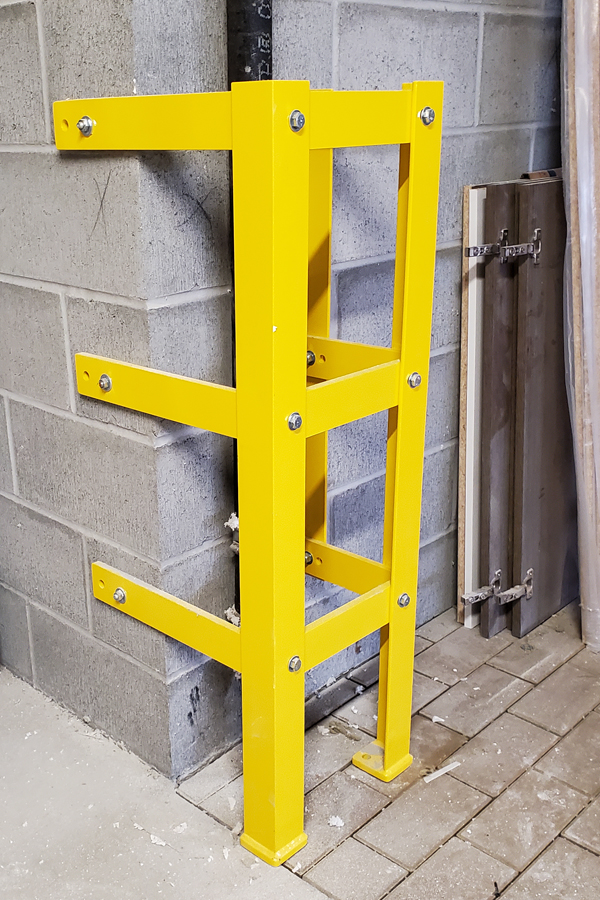

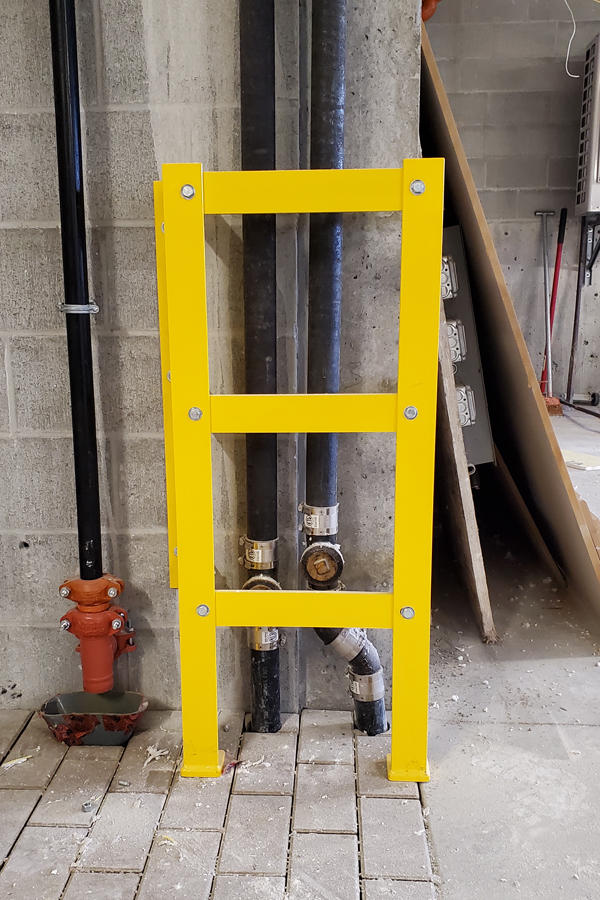

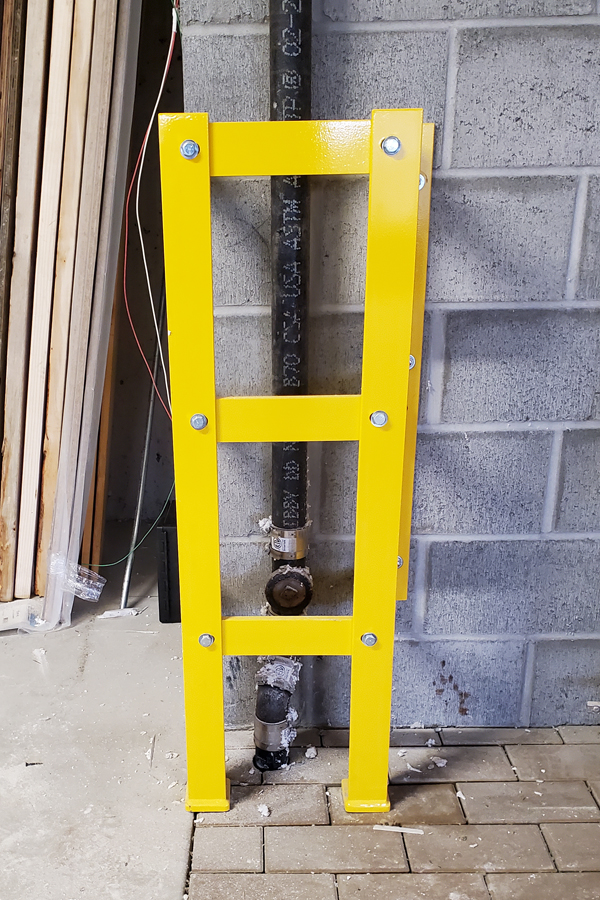

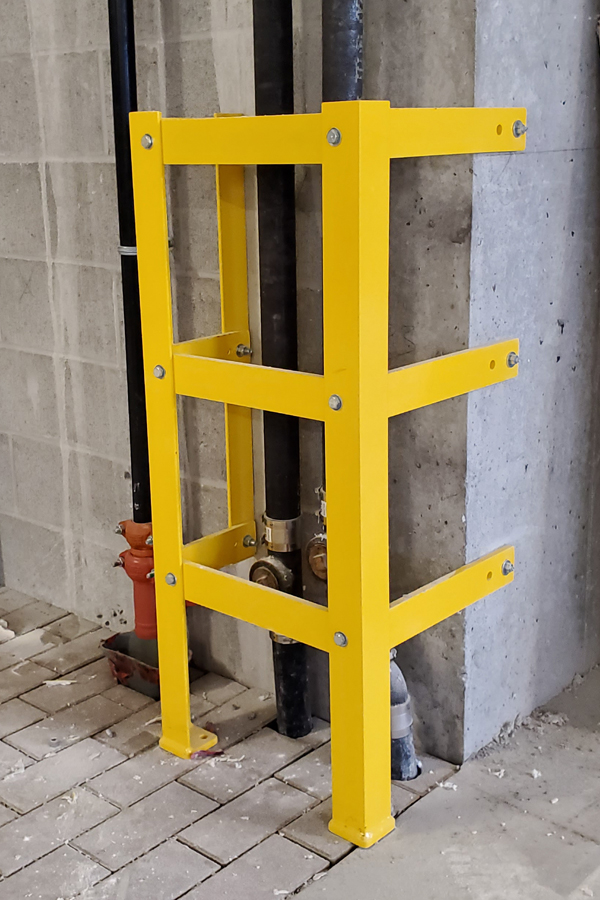

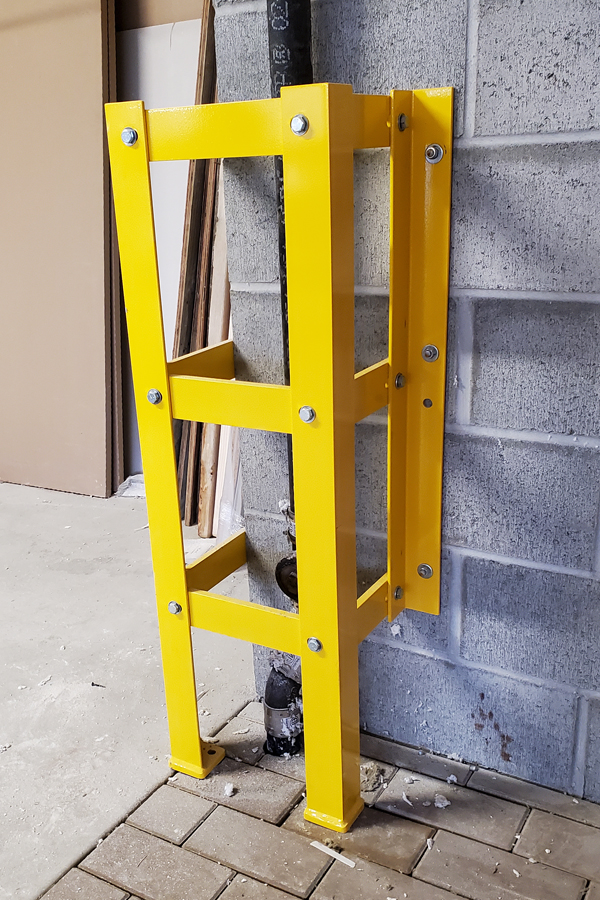

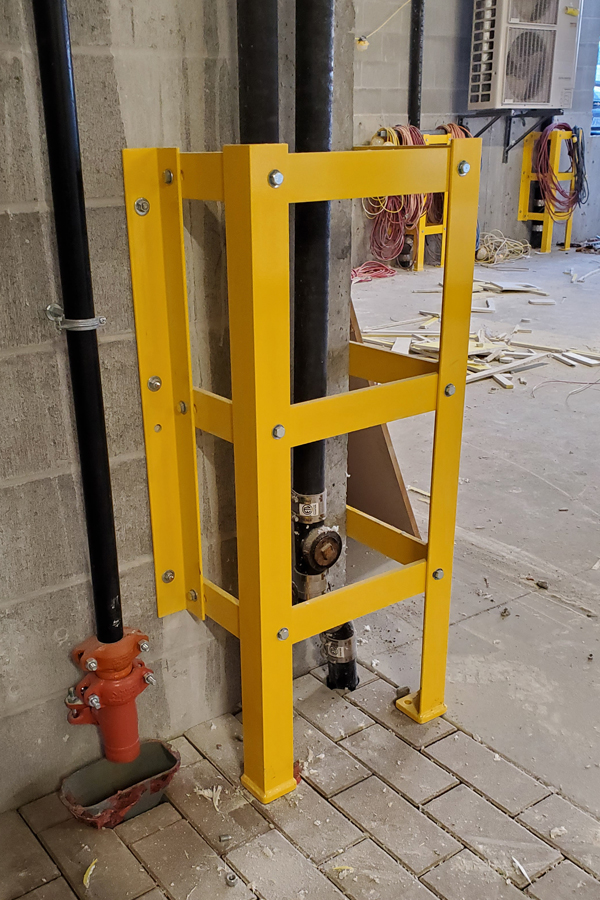

The Outside Corner Mounted Protective Guard (ranging in sizes from 12”- 36” Wide x 12”- 36” Deep) is intended to guard electrical wires, plumbing and gas pipes, gutter downspouts and other miscellaneous items against damage in an application where a standard ‘off the shelf’ unit will not suit the needed application.
This variation of the Outside Corner Mounted Protective Guard can be easily mounted to concrete, wood framing, or any other durable wall material from its eight mounting points. The open-concept design of this model allows for easy access to any item once installed (ie: faucets, water shut-off valves, electrical plugs, etc.). This design and included installation instructions allow for easy installation.

ADDITIONAL INFO:

  • Welded and assembled by certified CWB welders & fabricators
  • Made in Canada using environmentally conscious practices
  • Open-concept design allows for easy installation and access to any item once installed (ie: faucets, water shut-off valves, etc.)
  • Intended to guard electrical wires, plumbing and gas pipes, gutter downspouts and other miscellaneous items against damage in an application where a standard ‘off the shelf’ unit will not suit the needed application
  • Easily mounted to concrete, wood framing, or any other durable wall material from its eight mounting points
  • Installation hardware not included



Email sales@proguardpacific.ca for more information.
